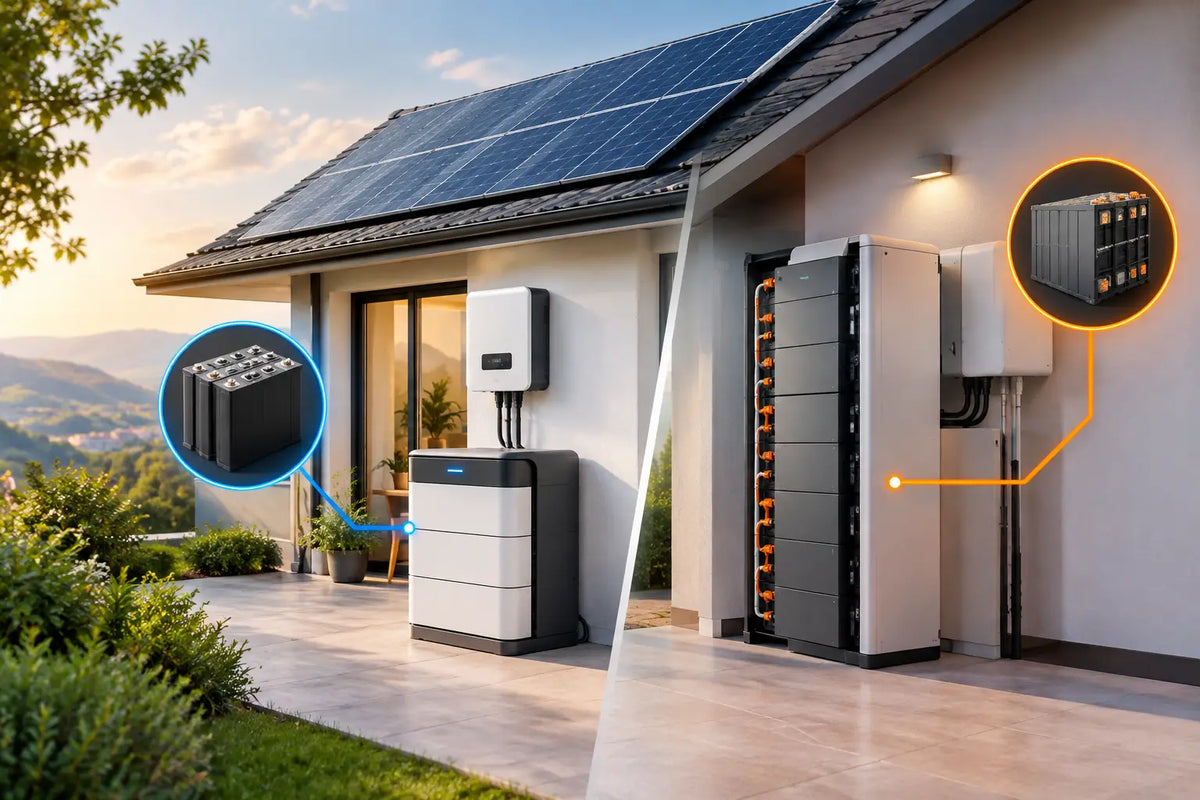

High-Voltage or Low-Voltage Batteries for Solar Systems

An energy storage system may have the right capacity in kWh and still be unable to deliver the power you need when a heat pump, oven, air conditioners or commercial loads operate simultaneously. This is where the essential difference between high-voltage and low-voltage batteries lies: it is not only about the battery's price or size, but about how the entire photovoltaic system manages energy and consumption peaks.

For a home, holiday house, business or agricultural installation, the right choice results from actual consumption measurements, the type of inverter and the project's objective. Do you want backup during power outages? Greater self-consumption? Off-grid operation? Or complete energy autonomy? Battery voltage is one of the first technical decisions that determine the final result.

What low and high voltage mean in batteries

In photovoltaic systems, battery banks with a nominal voltage of 48V or 51.2V are generally described as low voltage. This is the most widespread architecture in small and medium-sized hybrid or off-grid systems, particularly when modular LiFePO4 batteries are used.

High-voltage batteries operate at a significantly higher voltage, often from approximately 100V to 500V or more, depending on the manufacturer and inverter model. The name does not mean that one option is automatically better. It means that a different current is transferred for the same power.

The basic relationship is simple: power = voltage x current. For a system to deliver 10kW at 48V, it must handle more than 200A. At a higher voltage, the current required for the same power is much lower. This affects cables, fuses, thermal losses, expandability and the overall installation architecture.

Low-voltage batteries: when they have an advantage

The 48V solution is an excellent choice for many residential and off-grid projects. It is a mature technology with a broad range of compatible inverters and LiFePO4 batteries, and it often allows additional modules to be added as the user's needs increase.

For example, a holiday home that starts with 5kWh of storage for lighting, a refrigerator, internet and small loads may later be upgraded with additional batteries. The same applies to a home that initially wants protection from power outages and subsequently decides to increase its autonomy.

Low-voltage batteries are particularly suitable when the required power is moderate, when flexibility for future expansion is needed or when the project is based on 48V equipment, such as several Victron solutions and specific series of hybrid inverters. In properly designed applications, they provide very good efficiency and reliable operation.

There is, however, a practical limit. As the power that must pass through the battery increases, the current also increases. This requires larger cable cross-sections, carefully made connections, correct DC protection and strict adherence to the manufacturer's instructions. A poor connection in a high-current system is not a minor installation detail; it is a potential source of thermal losses and failures.

High-voltage batteries: for greater power and scalability

High-voltage batteries are generally selected for projects with increased power requirements. A large home with a heat pump, three-phase loads, electric vehicle charging or multiple air conditioners has a different energy profile from an apartment with basic loads.

At a higher voltage, the same load is supplied with a lower current. This enables more efficient management of high power and, depending on the architecture, lower losses along the path from the battery to the inverter. It is a logical choice for newer hybrid systems in which the inverter and battery have been designed as one integrated ecosystem.

High voltage is also valuable when the system must be expanded to a substantial capacity, such as in businesses, agricultural installations or homes with high daily consumption. However, selecting a battery with many kWh is not enough. The continuous and peak power it can deliver, the number of modules supported by the inverter and the system's behaviour in backup mode must all be confirmed.

The trade-off is that this is a more specialised architecture. Compatibility is strict: not every high-voltage battery can be connected to every inverter. An approved equipment combination, correct BMS communication and installation by a technician familiar with high-voltage DC requirements are essential.

The choice is not based on kWh alone

The most common mistake is purchasing a battery using capacity as the only criterion. A rating of 10kWh describes how much energy can be stored, not how much power the installation can receive at any given time. Two batteries with the same capacity may have completely different continuous discharge capabilities.

If a home consumes 15kWh during the evening, capacity is a critical parameter. However, if appliances with a combined power of 8kW operate simultaneously during backup hours, the discharge power, inverter and ability to start loads with high inrush current must be assessed. A pump, pressure booster or compressor does not behave like an LED lamp.

The study must assess the daily energy profile, power peaks, the presence of single-phase or three-phase loads, the required backup duration and the desired future expansion. Cycle life, depth of discharge, warranty, availability of technical support and certified compatibility of the complete system are also important.

Which solution suits each application

For a small off-grid system, a boat, a holiday home or a residence with basic backup requirements, low voltage often offers the best balance of flexibility, cost and equipment choice. Provided that the inverter, cables and fuses are correctly sized, it is a proven and effective solution.

For homes with high consumption, new high-power hybrid systems or commercial installations, high voltage may offer a more suitable architecture, particularly when the objective is to support large loads from storage and progressively increase power and capacity.

There is no correct answer without the project's data. A low-voltage battery may be the technically correct choice for a demanding off-grid system, while a high-voltage battery may be excessive for a small home. Conversely, an economical 48V solution may restrict a project that requires consistently high power.

Safety, compatibility and installation

Voltage is not only a matter of efficiency. It determines the safety requirements and the quality required from the installation. Every system needs appropriate fuses, disconnectors, cables, terminals, correct earthing where required, and protection devices that comply with the equipment specifications.

For high-voltage batteries, strict adherence to the manufacturer's instructions is essential. Module connections, the start-up sequence, BMS communication and the installation location do not allow improvisation. Safety remains equally important in low-voltage solutions because high currents require flawless electrical connections.

Hellenic Energy treats storage as part of an integrated energy study: photovoltaic panels, inverter, battery, backup distribution board and actual consumption must operate as one system. The free technical study helps select a system that meaningfully reduces electricity costs without oversizing or restrictions that only become apparent after installation.

The best battery is not the one with the highest voltage or the greatest capacity on paper. It is the one that works correctly with your inverter, supports your critical loads and can meet your next energy requirement, not only today's.
